Automatic leak testing machine with strong structure accurate detecting the leakage

Automatic leak testing machine with strong structure accurate detecting the leakage​

Brief introduction:

Hollow container Leak Testing Machine is developed and designed to satisfy the demands of container producer for production line,high quality control customers. It can figure out all the tiny holes in the hollow containers without destroying the hollow containers, using the microcomputer pressure-difference analysis principle, which can test various kinds of containers.

It is popular use in food packing,medical packing,chemical,spary ccontainer,any material hollow products and ultrasonic welding production line.

It can test from 5ml-300L,can be test different product under special design order.

The fastest testing speed is 30000pcs/hr using a special bottle management device.

Parameters:

(1). Overall size: 1600×600×1550 mm(length ×width ×height)

(2). Power: 220V,50-60Hz (special voltage need add 10% in price)

(3). Air pressure requirement: 5-7kgf/cm²

(4). Testing time: 2-15seconds/piece(according to bottle size)

(5). Power requirement : 150W

(6). Suitable container volume:200ml-5L

(7). Suitable height:50mm-400mm

(8). Suitable thickness:20mm-200mm

(9). quantity of testing head: 1(one)

(10) . speed of the transportation tie:o-15(rice/sec)

main configuration

Item	Brand & Original
PLC /controller	Mitsubishi-Japan
Monitor/screen	Xunjie-China
Fiber Laser sensor	Autonics-korea
Pressure sensor	Autonics-Korea/SMC-Japan
Pneumatical valve	Airtac-Taiwan

Advanage :

• Quantifiable leak test

• Calibration to ISO9000 etc

• Fast clean and dry test

• Easily incorporated into automatic or manual line

• Automated pass/fail limits

• Automatic pass/fail marking

• Data outputs for SPC analysis

Product Tags:

leak testing machine



packing machine

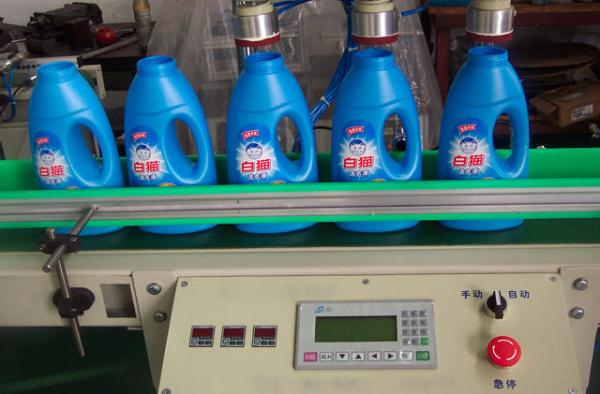

Automatic leak testing machine with strong structure accurate detecting the leakage Images
